STARDEX PIEZO SOLUTIONS
STARDEX® PIEZO TESTER
Device for analysis of piezo injectors.
The device is designed to measure the gap between the piezo
actuator and the pusher of the nozzle valve, as well as the

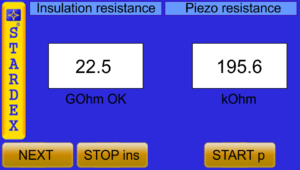

resistance of the piezo package and the insulation resistance
at a given voltage.
With the help of this device and a micrometer, it is possible
to measure the expansion of the piezo package of
VDO/Siemens/Continental and Bosch piezo injectors at various voltages.

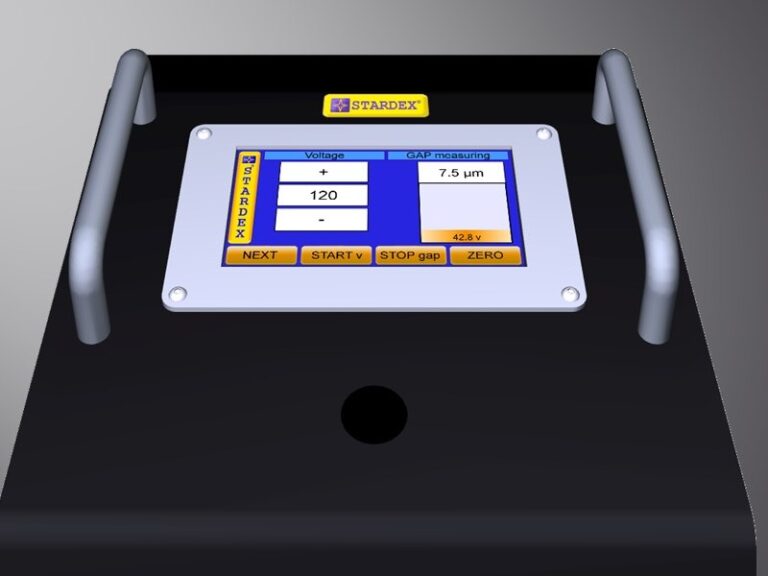

The device is equipped with a mini computer and a color touch screen
on the front panel.
STARDEX PIEZO SOLUTION…
HIGH-PRECISION
MEASUREMENT OF THE EFFICIENCY
OF BOSCH AND CONTINENTAL / SIEMENS
INJECTORS PIEZO ELEMENTS.
FROM 14 TO 160 VOLT
AVAILABLE ON ALL NEW ULTIMA
DEVICES…
Piezo element touch detection…
Tighten the piezoactuator nut with a torque wrench with appropriate force.
If the arrow on the screen twitched, it means there is no gap between the
piezoactuator and the spindle, choose the actuator shim of the desired
thickness and try again.
