CAM BOX ULTIMA



STARDEX CAM BOX ULTIMA

STARDEX CAM BOX ULTIMA Tester

STARDEX CAMBOX ULTIMA

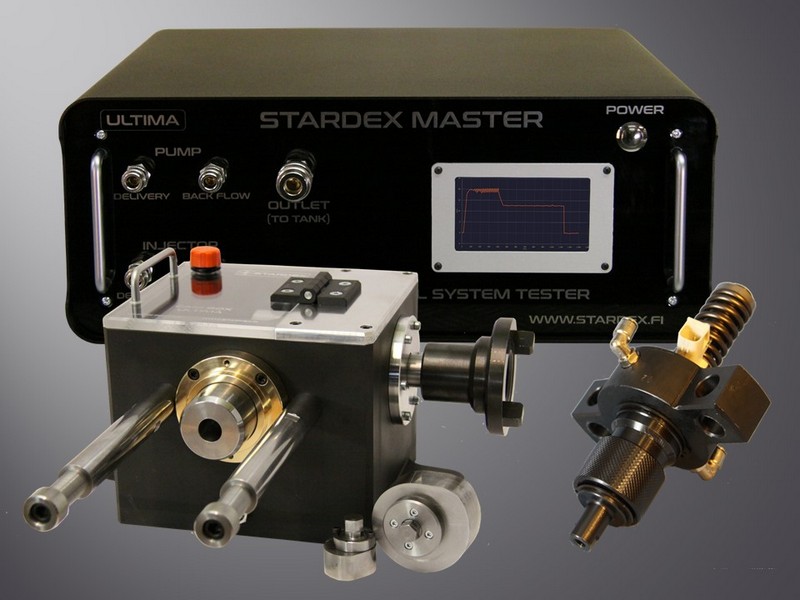

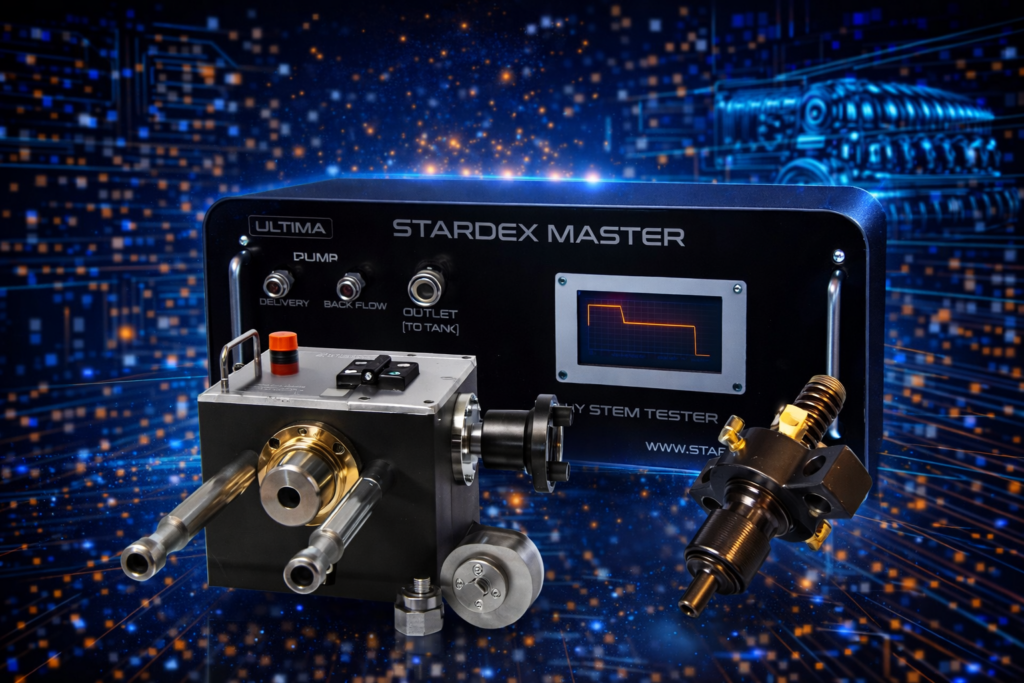

Stardex ULTIMA Cam Box & MASTER ULTIMA is the
diagnostic  equipment for test UIS & PLD.
For electromagnetic and piezo, single & two – valve units.
From oldest MUI to newest UIS/PLD systems are available
(including Delphi F2E/ EURO 6)…

Two easily replaceable cams.
Fully electronic measurment of delivery.
BIP detector. Measurment of injection delay.
Testing of the electronic parameters of electromagnetic coils and piezo actuators.
Full  computer, touch screen…
All you need for testing MUI, UIS and PLD is in one modern device.

Stardex Master Ultima is also the simulator for Common Rail injectors and pumps…

For adapters 6 and 7 (for Volkswagen injectors), the angle value in the settings should be 8 less than the other adapters, because a small cam is used. The default setting is 70 for other adapters (you may have a different value). For example, if the value is 70, then you need to set it to 62. (See User manual Page 9)

STARDEX CAM BOX ULTIMA Tester

Made out of special aluminum. Light, simple and reliable
Stardex Cam Box is easily & promptly installed
on any test bench…

STARDEX CAM BOX ULTIMA Tester

The oil is poured into the Cam Box through
the upper lid…

STARDEX CAM BOX ULTIMA Tester

With the help of the adapter, it is quick and simple to set a Unit Injector.

STARDEX CAM BOX ULTIMA Tester

In order to change the cam, it is not necessary to
fully empty the oil tank. It is enough to pour out
just a small amount.

STARDEX CAM BOX ULTIMA Tester

Removing one cam…

STARDEX CAM BOX ULTIMA Tester

And installing another cam on its place…

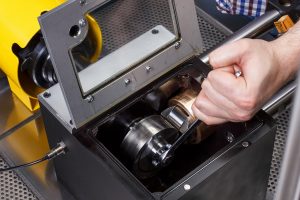

STARDEX CAM BOX ULTIMA Tester

Tightening with the wrench…



Adding oil…
