STARDEX DIMAS QUATTRO ULTIMA

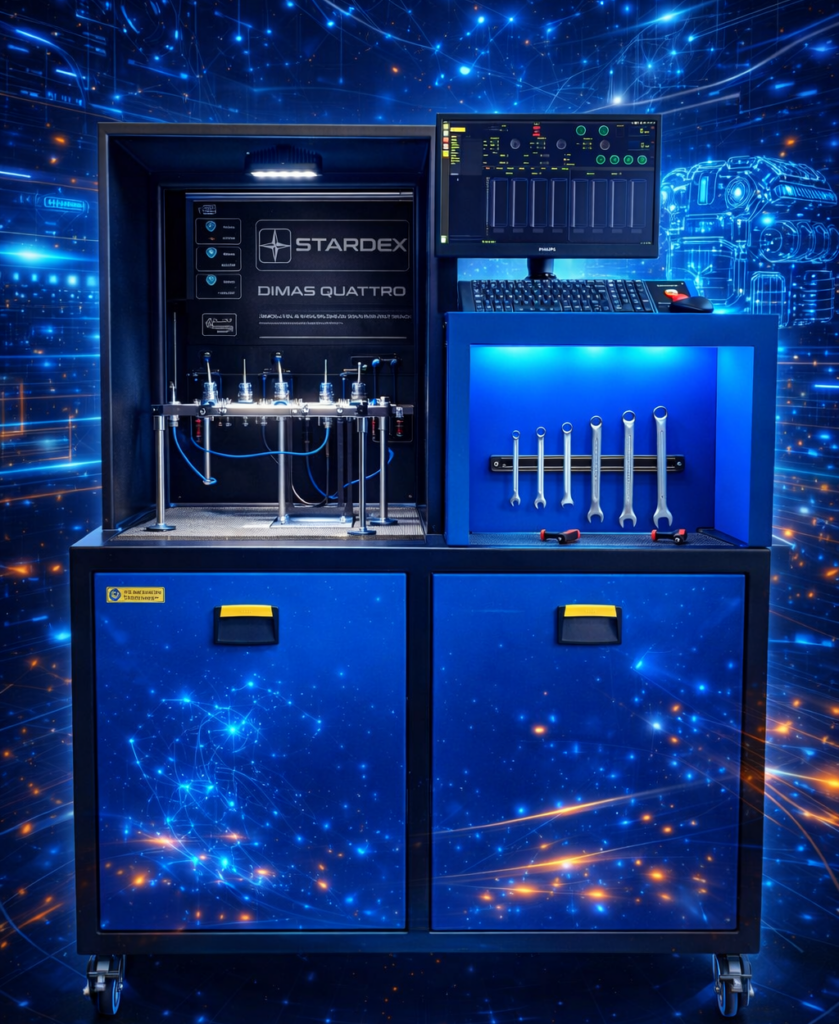

Introducing “Stardex Dimas Quattro Ultima”
The most advanced four-channel test bench for all
Common Rail injectors:
Bosch, Delphi, Denso, Continental (VDO Siemens), Caterpillar,
Cummins, L’Orange, MTU, Alco and all other injector types on
the market.
The Stardex Dimas Quattro Ultima is the newest generation
of Stardex test equipment, designed for comprehensive testing of all
Common Rail injectors.
Our equipment is built to test the injectors used today — and the ones
coming tomorrow.
Electromagnetic injectors, Piezo injectors, Single- and dual-valve
CR injectors…
Key Features:
Manual and automatic testing modes.
Coding support for Delphi, Bosch, Denso, and Siemens
(Continental) injectors.
Advanced electrical analysis of electromagnetic and piezo
injectors: resistance, capacitance, and inductance.
Step 3 function.
Piezo element measurement.
Injection delay sensor.
Thousands of test plans included.
Extensive technical database and useful service information.
Cables and software included.
One of Stardex’s key advantages is our software policy:
it has always been, is, and will always remain free for
our customers.
There are no paid licenses, no renewal fees, and no hidden
subscriptions.
All software updates are published free of charge on our
website several times a month and are available to all owners
of Stardex equipment at any time —without passwords, registration,
or access restrictions.
The Stardex Dimas Quattro Ultima can test all injector systems —
electromagnetic and piezo, including injectors with single- and dual-valve actuators (2-pin and 4-pin).
It supports injector coding for Bosch ISA/IMA, Delphi C2I / C3I / C4I,
Denso, and VDO (Continental / Siemens) injectors.
The device can generate up to four different voltages, up to 400 V, both
positive and negative, as well as up to three current levels within
a single pulse.
The Dimas Quattro Ultima test bench is capable of high-precision
generation of original control signals used by all major manufacturers
of modern Common Rail systems.
The Ultima device also automatically measures the electrical
characteristics of injectors, including: resistance and capacitance of
piezo injectors and resistance and inductance of electromagnetic
injectors
